Manufacturer: BorgWarner
Part Number: 177283
Condition: New
Product Description:

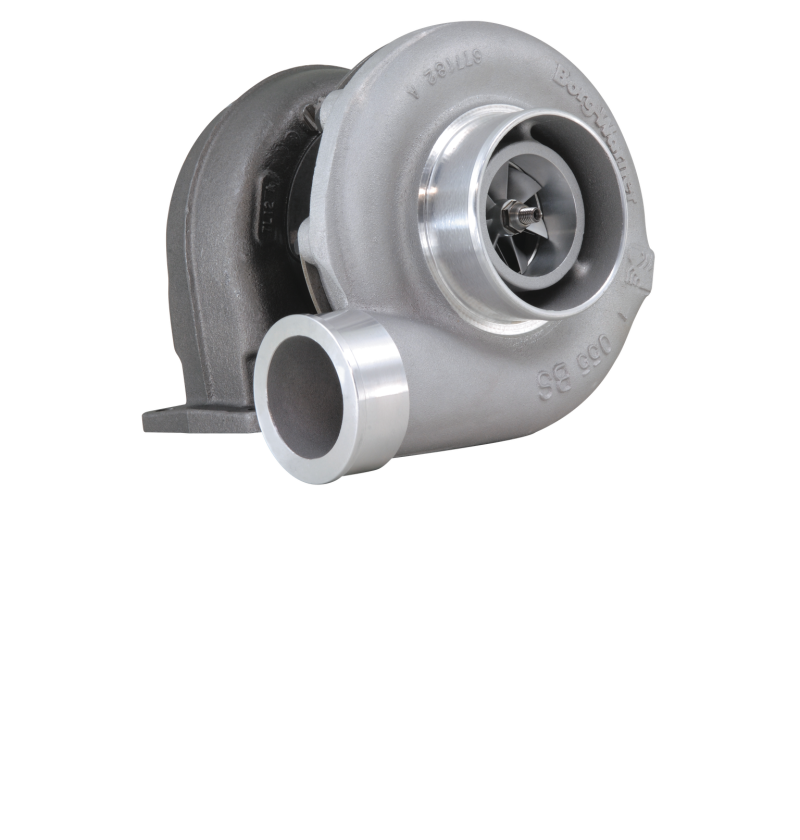

S300SX3 320 - 800 HP Turbo
Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car. Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications. With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.
- Twin hydro dynamic journal bearings
- Extended tip technology compressor wheel
- Twin scroll turbine housing options available
- Adjustable compressor and turbine housing orientation
- Compressor cover recirculation grooves
Additional Information:
Comp. Wheel O.D. (in): 3.44
Comp. Wheel O.D. (mm): 87.37
Comp Wheel Inducer Dia. (in): 2.48
Comp Wheel Inducer Dia. (mm): 62.99
Turbine Wheel O.D. (in): 3.00
Turbine Wheel O.D. (mm): 76.20
Turbine Wheel Exducer (in): 2.66
Turbine Wheel Exducer (mm): 67.56
Turbine Housing A/R: 0.88
Turbine Inlet: Volute, Open Flow, T4 Inlet
Not CARB legal: Not for sale or street use in CA & CARB states.
