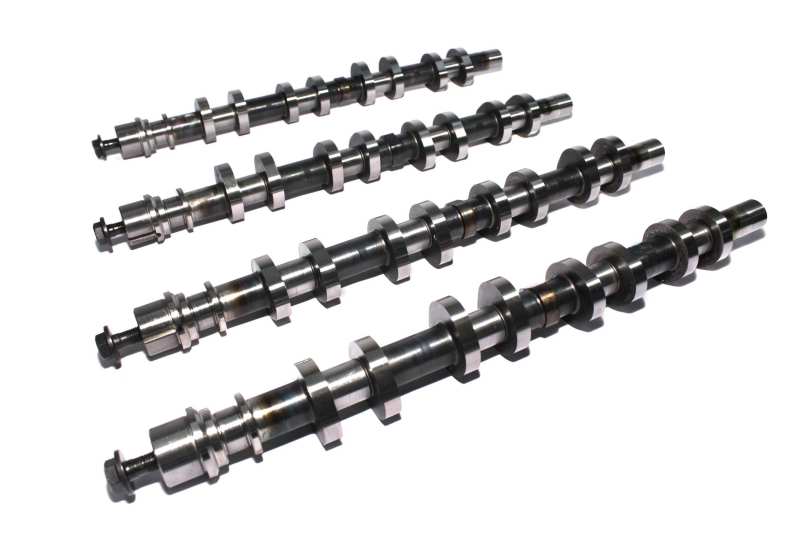

Comp For Ford 4.6/5.4/5.8 Xtreme Energy-R S-Hydraulic Roller Camshaft.
Xtreme Energy-R S-Charged/N2O 230/232 Hydraulic Roller Cams Ford 4.6/5.4/5.8
Modular 4-V
DOHC - Serious street effort for Supercharged or Nitrous engines. Requires computer modifications, lower gears & spring number 26123. Automatics will require a 2000 stall. Mild rough idle.
SPECIFICATIONS :
Engine Family:Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
RPM Operating Range:1,500-6,000
Grind Number:XE266BH-116
Cam Type:Hydraulic Roller Swinging Follower
Lifter Style:Hydraulic Roller Swinging Follower
Camshaft Series:XE-R Supercharged and Nitrous
Camshaft Gear Attachment:1-Bolt
Usage:Street/Performance
Valve Springs Required:Yes
Camshaft Material:Billet Steel
Advertised Intake Duration:230
Advertised Exhaust Duration:267
Intake Duration at .050 Inch Lift:230
Exhaust Duration at .050 Inch Lift:232
Intake Valve Lift:0.475
Exhaust Valve Lift:0.45
Lobe Lift Intake:0
Lobe Lift Exhaust:0
Lobe Separation:116
Intake Centerline:114
Assembly Lubricant Included:No
RECOMMENDED COMPONENTS
Component Part Number
Break-In Lube:159
Note Description
112 Requires aftermarket valve springs/retainers
FITMENT :
Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+)
