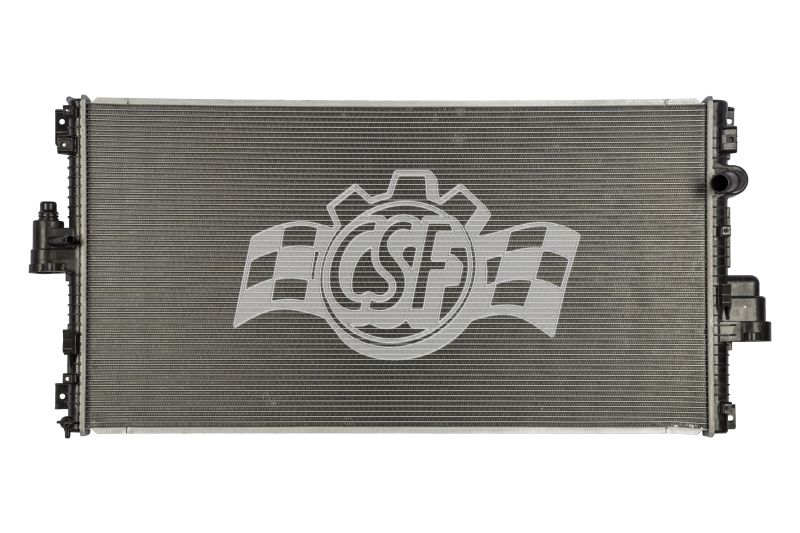

CSF 3602 2 Row Plastic Tank Aluminum Core Radiator for Ford Super Duty 6.7L

OEM specified Plastic Tank-Aluminum Core Construction
Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
Tubes - Welded Type or Latest Generation "B-Tube" Design
Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
100% leak tested before leaving factory at 150% of operating pressure
Industry Best Packaging - "10 Foot Drop Test" Standard
Drop-in Fit
High Performance Transmission Cooler with special Built-in Turburlator, when applicable
All components are installed, torqued, & tested on Radiator during assembly

Specifications:

Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe.
Hazardous Material: No
Radiator Cap Supplied: No
Cross-flow/ Down-flow: Cross Flow
Tank Material: Plastic
Core Material: Aluminum
No. Of Rows: 2
Bottom Hose Fitting (in): 1 Left
Top Hose Fitting (in): 1 1/4 Right
Outlet Width (in): 2 1/8
Outlet Length (in): 21 3/8
Inlet Width (in): 2 1/8
Inlet Length (in): 21 3/8
Core Thickness (in): 1 5/8
Core Width (in): 20 11/16
Core Length (in): 39 3/8
Box Weight (lbs): 25
Box Height (in): 7 13/16
Box Width (in): 24 3/4
Box Length (in): 48 3/4
