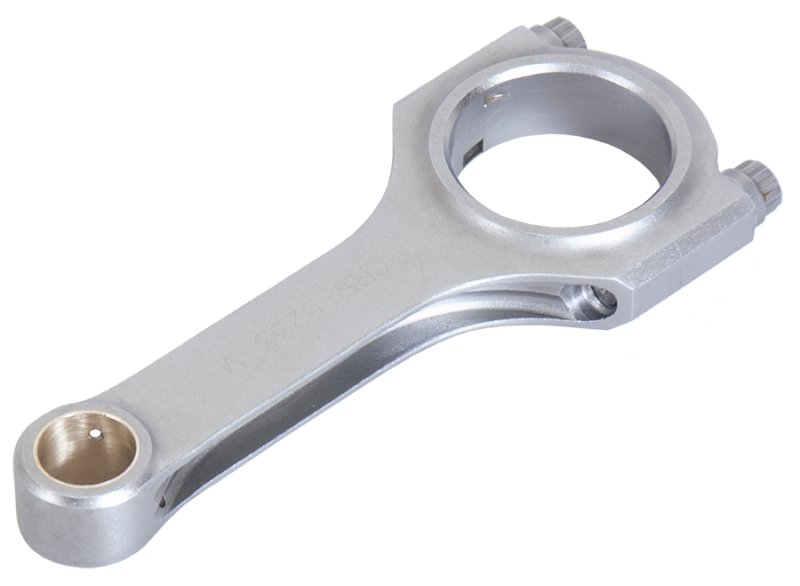

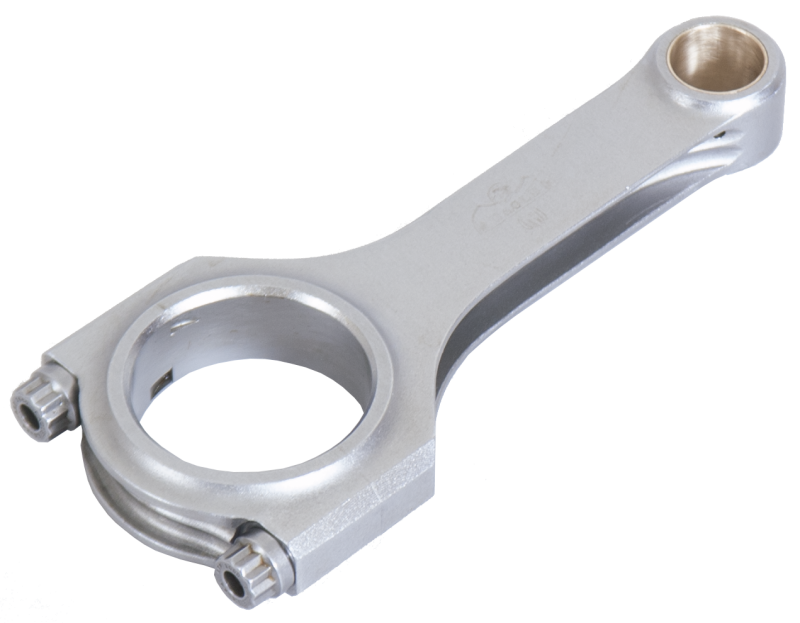

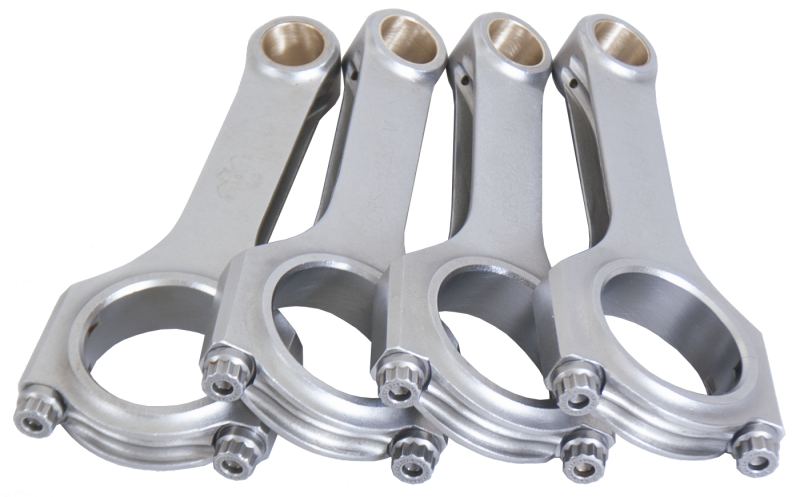

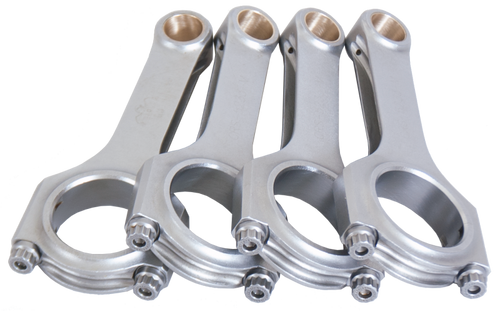

Eagle 90-97/99-04 Mazda Miata Connecting Rods (Set of 4).
Eagle H-beam connecting rods for the Mazda B6/BP engines are forged from SAE 4340 steel for superior strength. ARP bolts and alignment sleeves are used for durability and precise cap location. Sets are weight matched to +/- 1g. Sizing is performed on the unique Sunnen Krossgrinding system for a perfect housing bore. These are the perfect choice for engines up to 600 hp.
Includes a set of four connecting rods and ARP rod bolts.
To use Eagle connecting rods as a bolt in application, you will need to purchase a set of forged pistons. The wrist pin ends of the rods are designed to work with the floating wrist pins that companies like CP Pistons, Wiseco Pistons, JE / SRP Pistons and Arias Pistons include in their kits.
Typical Weight: 535 grams
Design: H-Beam
Length: 5.233" (Standard)
Pin Size: 0.787" (20mm)
Rod Journal: 1.770"
Housing Bore: 1.890"
Big End Width: 0.8580"
Pin End Width: 0.8580"
Thickness Above Pin: 0.180"
Fasteners: 3/8" ARP 2000 Rod Bolts
