Eagle 06-09 Mazdaspeed 3/6 MZR 22.5mm Pin H-Beam Connecting Rods (packaged in weight matched sets)

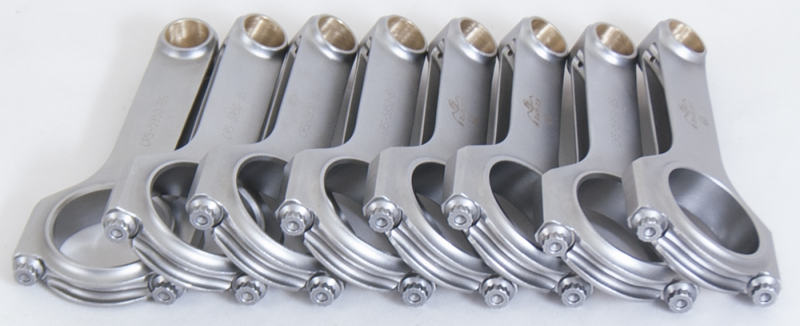

Eagle H-Beam Connecting Rods
Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.
The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models—and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included. Order the model designed for your vehicle year/make and engine application.
Center To Center 5.927in
Forged 4340 Steel
Floating Wrist Pin Style
Pin Bore 0.866in
Big End Bore 2.1650in
Set of 4 Rods
Clearanced For Stroker: Yes
ARP Rod Bolts ARP 2000 Alloy
Rod Bolt Diameter: 3/8in
Tensile Sterngth 200,000 psi
12 Point Rod Bolt Head Style
Average Rod Weight (g): 580
Advertised Horsepower Rating: 950
Pin End Width (in): 0.858 in
Big End Width: 0.860 in
Advertised RPM Rating: 9000
Weight Matched: Yes
Magnafluxed: Yes
Shot-Peened: Yes
NOTE: Block may need to be clearanced.
