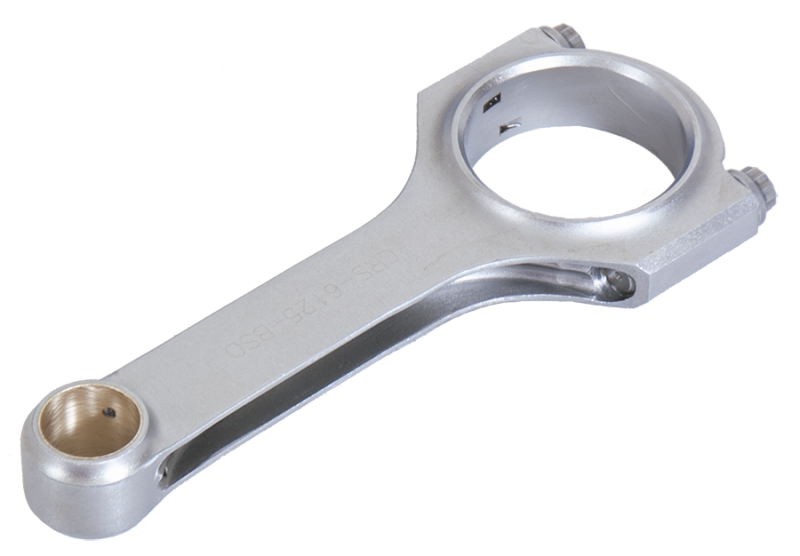

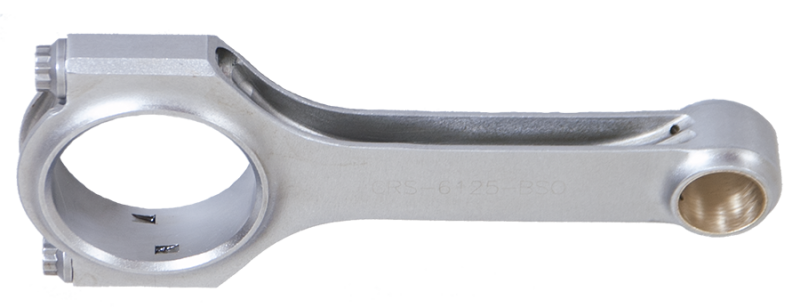

Eagle CRS6125O3D Forged 4340 Steel H-Beam Connecting Rods; 6.125 in. (Set of 8) Chevy and Pontiac LS Engines.
Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal.
The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models and are available in Stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades.
Instructions and rod bolt lubrication are included. Order the model designed for your vehicle make and engine application.
Dimensions:
Big End Width: 0.9400 in.
Housing Bore: 2.2250 in.
Length: 6.125 in.
Pin End Width: 1.0600 in.
Pin Size: 0.927 in.
Rod Journal: 2.1000 in.
Thickness Above Pin: 0.170 in.
Typical Weight: 620g
Common Applications:
Chevrolet LS-Series
Pontiac LS-Series
