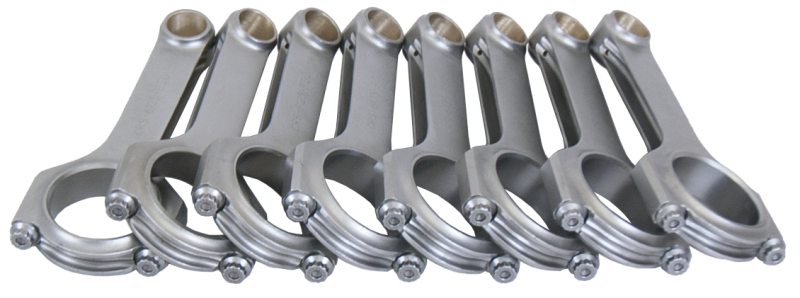

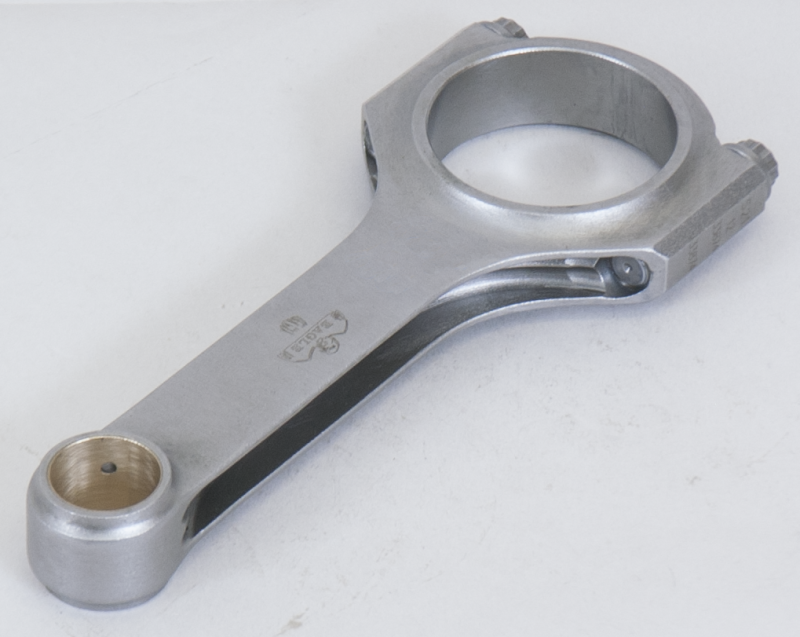

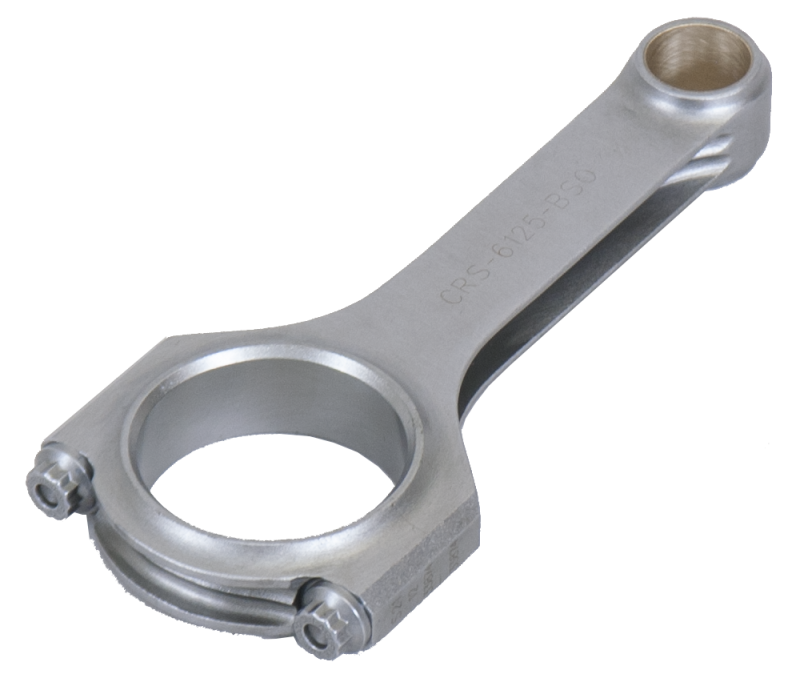

Eagle Chevrolet LS / Pontiac LS 4340 H-Beam Connecting Rod Set 2/ ARP 2000 (Set of 8)
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Common stroker rod, ARP 2000 bolts.
Torque to 75 ft-lbs, ARP moly lube ONLY.
Specs
Big End Width: 0.94in
Bolts: 7/16in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.125in
Housing Bore: 2.225in
Length Center Bore To Center Bore: 6.125in
Material: Forged 4340 Steel
Pin End Width: 1.06in
Pin Size: 0.927in
Rod Journal: 2.1in
Forged 4340 steel H-Beam connecting rods are forged from a two-piece forging and feature a fully machined and shot-peened surface. Sizing is held to exact tolerances. Sold as a weight-matched set. Equipped with ARP 2000 bolts for even more power-handling capability. Recommended for competition use.
Common stroker rod, ARP 2000 bolts.
Torque to 75 ft-lbs, ARP moly lube ONLY.
Specs
Big End Width: 0.94in
Bolts: 7/16in ARP 2000
Bushed for full-floating piston pin: Yes
Center to Center Length: 6.125in
Housing Bore: 2.225in
Length Center Bore To Center Bore: 6.125in
Material: Forged 4340 Steel
Pin End Width: 1.06in
Pin Size: 0.927in
Rod Journal: 2.1in
