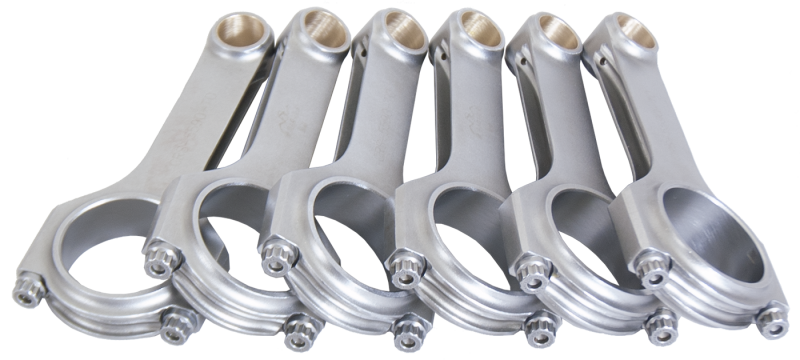

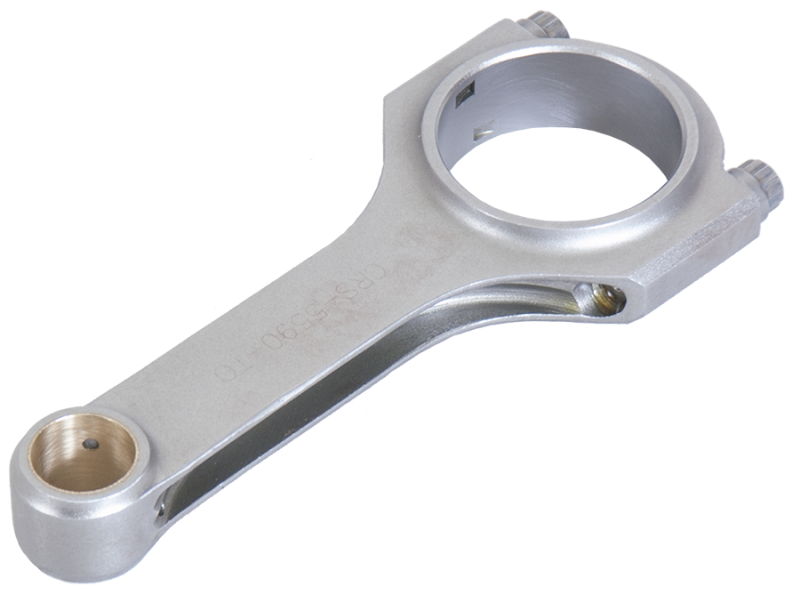

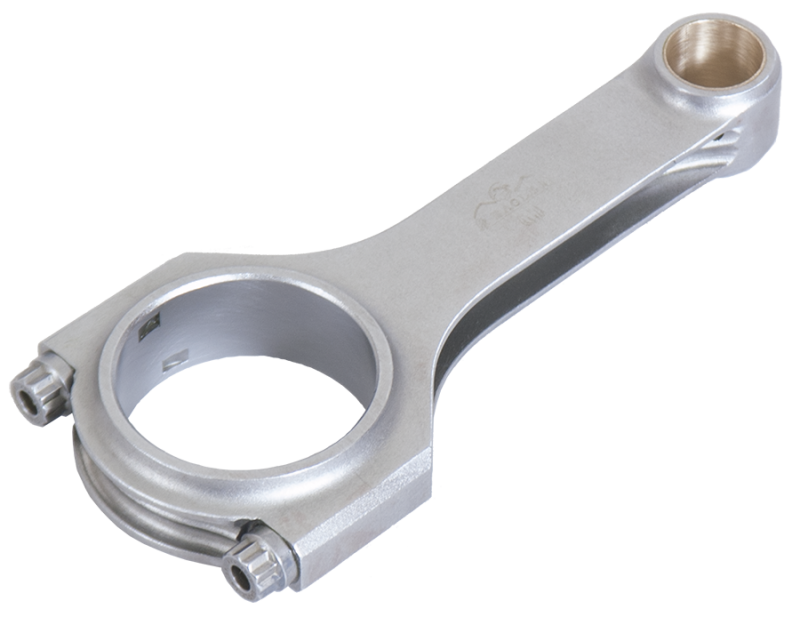

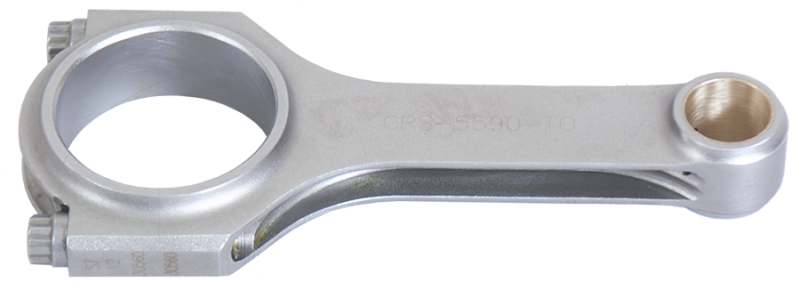

Eagle Forged H Beam Rods for Supra 2JZGTE 2JZ-GTE JZA80 SC300 IS300 GS300 Soarer.
Eagle Rod features "Two Piece Forging" and high quality H-BEAM Forged 4340 steel for superior fatigue life. Rod caps are separately forged for the grain to be perpendicular thereby strengthening the connecting rod. Eagle also uses special "mix" in their ESP 3-D lines to further strengthen & extend fatigue life without making the rods brittle.
agle ESP H-Beam Forged Connecting Rods for 2JZGTE. By utilizing forged 4340 steel, ARP 2000 fasteners, and state of the art machining system, these con-rods are made of the highest quality and built to be abused.
Car Make: Toyota / Lexus
Car Model: Supra MKIV
Years: 1993-1998
Engine: 2JZ-GTE / 2JZ-GE
Torque Specs: 43 ftlbs with ARP moly lube on threads
Pin Fit: Bushed
Small End Width: 1.020
Thickness Above Pin: 0.200
Rod Journal: 2.0470
Recommended Rod Bearings: CB1628
Rod Bolt: 3/8" ARP 2000
Gram Weight: 590 g
Big End Width: 1.020
Big End Bore: 2.1667
Beam Type: H-Beam Rods
Pin Size: 0.866" / 22mm
Rod Length: 5.590
Material: 4340 Forged Steel
