FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 314cid 3.701 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-1cc,377g,11.0CR, 2618.
Every MAHLE Motorsports piston is backed by 90-plus years of racing heritage and technology. From the invention of the first aluminum piston to the most advanced design and machining processes being used today, MAHLE delivers unmatched performance and durability. MAHLE's light-weight, low-drag, design specific forgings are machined with close attention given to ring groove quality, tolerances and consistency. All MAHLE Motorsports pistons are dual or triple coated, adding protection and maintaining consistent performance over the life of the engine. There is no secret why top professional race teams use MAHLE Motorsports pistons.
Additional Information:
Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR
Associated Comments:
Short Description: Piston Kit
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate Plus Grafal Plus Hard Anodized top ring groove
Crown Vol: -1cc

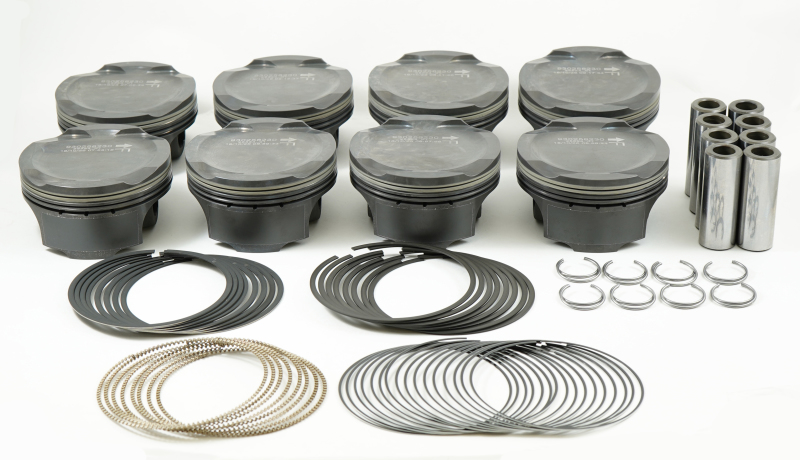

Package Qty: Sold as a set of 8
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 377g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.2mm, 1.2mm, 2.5mm

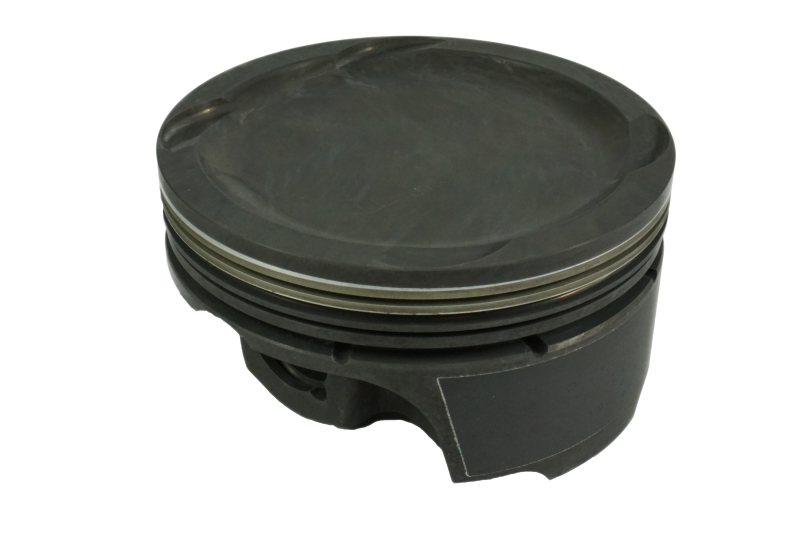

Piston Style: Dome, w/ 4 valve reliefs
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: prop-65-warning-label_text_image.jpg
Prop 65 Yes/No: Yes
Rings Included: Yes
Title: Mahle Motorsport FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 314cid 3.701 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-1cc,377g,11.0CR, 2618
Guaranteed Fitments:
Ford Coyote/Voodoo
