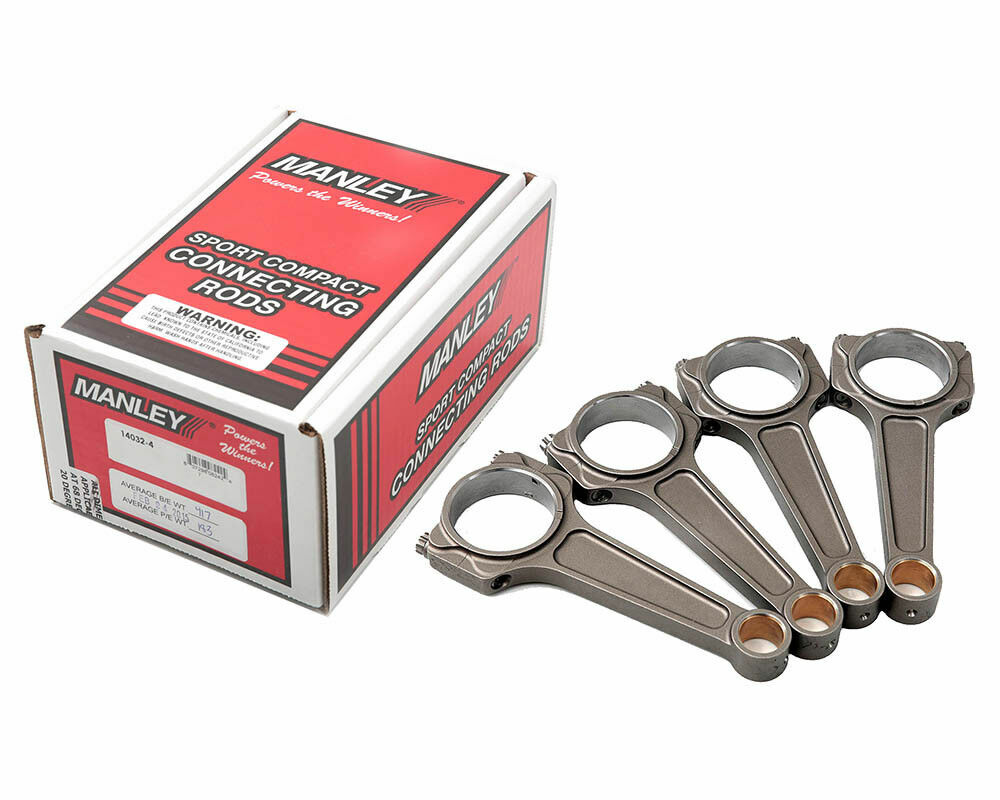

Manley 03-06 Evo 8/9 / 94-99 Eclipse (7 bolt 4G63) Turbo Tuff w/ ARP 625+ Bolts I Beam Rod Set.
Manley Pro Series I Beam Turbo Tuff Connecting Rods for Mitsubishi 4G63 / 4G63T 7 Bolt Engines. These Connecting Rods are Standard 5.905" / 150mm Length and will work with Standard 88mm Stroke 4G63 Crankshafts, as well as the Manley 94mm and 100mm Stroker Crankshafts. Will NOT work with the early 6 Bolt Crankshafts. These Rods are supplied with 3/8" ARP Custom Age 625 Cap Screws. We suggest these rods for all 4G63 7 Bolt Applications up to 1200 HP
Specifications:
Car Make: Mitsubishi / Eagle
Car Model: Talon TSi / Eclipse GST GSX / 2G DSM / Evo 1-9
Years: 1993-1999 DSM, 1992-2006 EVO
Engine: 4G63T 7-Bolt
Rod Bolt: 3/8" ARP CA625+
Gram Weight: 675 g
Big End Width: 1.038
Big End Bore: 1.890
Beam Type: Turbo Tuff Rods
Pin Size: 22mm
Rod Length: 5.905
Material: 4340 Steel
