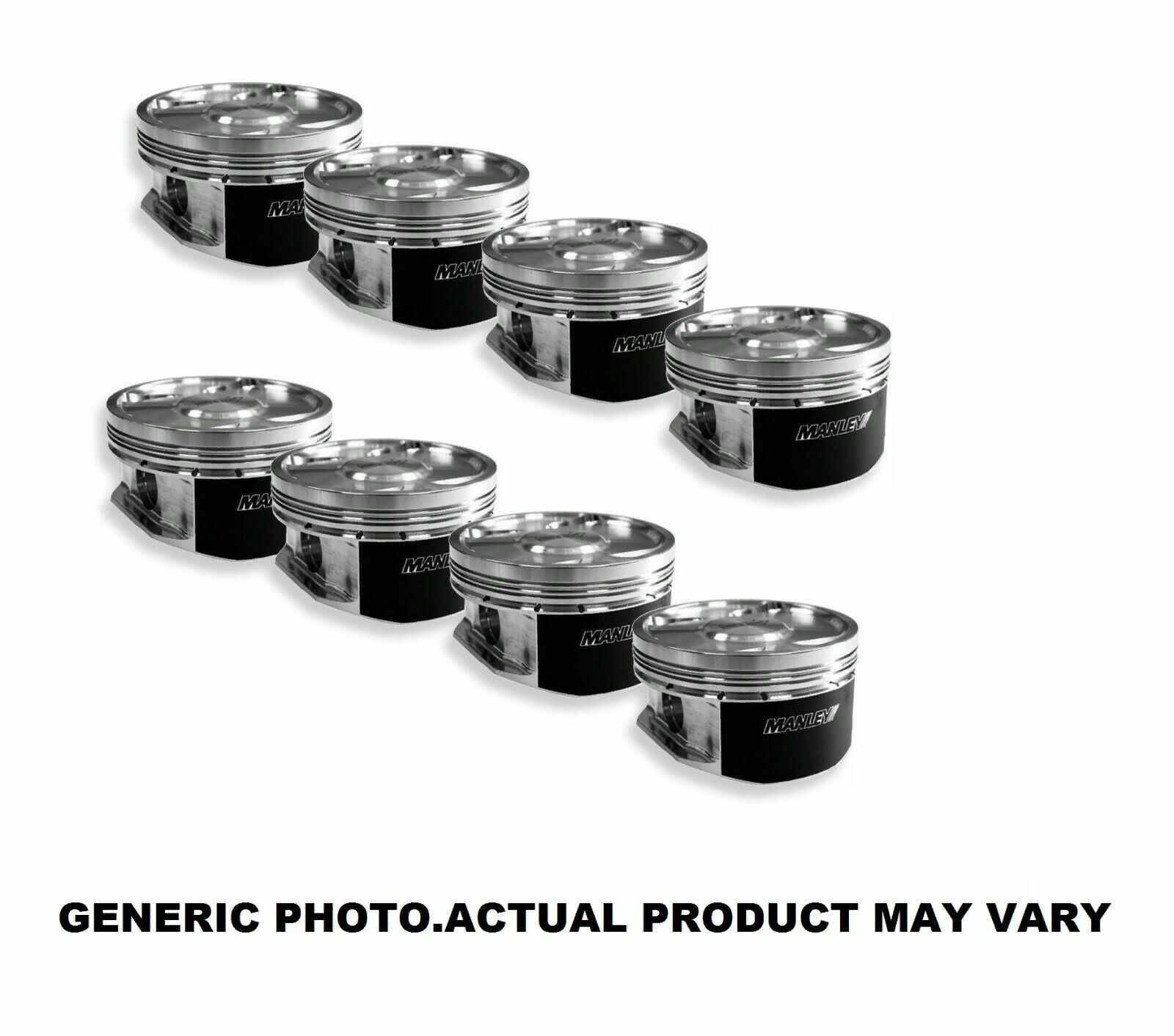

Manley Ford Coyote 5.0L DOHC 3.630in Bore +3.75cc Dome Piston Set.
Stock 3.650” Stroke Pistons +3.75cc DOME (11.0:1)
* 2618 high strength material; Lightweight design
* Perfect ring groove to skirt squareness
* Offset wrist pin design for quiet start-ups
* Pressure balance groove
* Round wire locks
* 1.2, 1.2, 3mm ring package
* .200” deck thickness, .225” down top ring
* Will accommodate +1mm valve sizes
* Extreme Duty Series: 9310 Alloy P/N 42507 (2.500” x .210” wall, 22mm/.866” dia., 138 grams)
Notes : These pistons are designed for connecting rods with .866” / 22mm diameter
floating wrist pins
