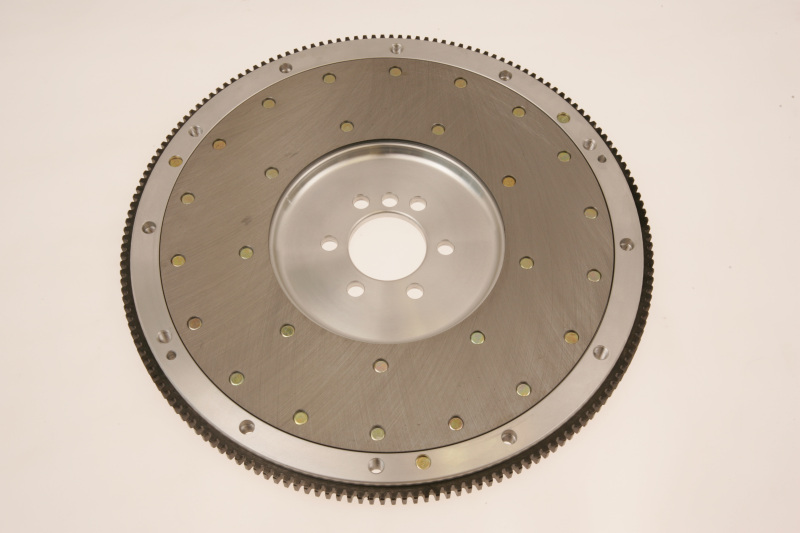

McLeod Flywheel Aluminum Ford 4.6/5.0/5.4L Cobra 8 Blt Crk - 96-15 Gt Muti Drill 164 Tooth.
McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.
McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.
Part Number:
mlr563408
Description:
FLY ALM FORD 4.6/5.4L COBRA 8 BLT CRK - 1999-2000 GT MUTI DRILL 164
Engine:
1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank
Pressure Plate Pattern 1::
1986-1999 10.5" Mustang Diaphragm with 8mm Bolts and Dowel Pins.
Pressure Plate Pattern 2::
1999-Up 11" Mustang Diaphragm with 10mm Bolts and Dowel Pins.
Pressure Plate Pattern 3::
10,10.5" Long & 10" Diaphragm with 5/16" bolts
Pressure Plate Pattern 4::
11" Long-Diaphragm with 5/16" bolts
Flywheel Material:
Aluminum
Ring Gear:
164 tooth
NOTE::
CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Make:
Ford
Weight:
15 Lbs
Clutch Patterns:
10.5" Mustang Diaphragm 1986-2000 with Dowel Pin Holes
Clutch Pattern 2:
2001.5-2004 11" Diaphragm with Dowl Pin Hole
Disc Diameter:
10.5"/11"
NOTE 2::
This Flywheel will not bolt up to the OEM 2012-Up Pressure Plate with factory 9 bolt pressure plate pattern and 8 mm Dowel Pins. Please call McLeod Tech for recommendation (714) 630-2764.
Clutch Pattern 2:
2001.5-2010 11" Diaphragm with Dowl Pin Hole
Engine:
1996-2017 4.6L/5.0L/5.4L 8 Bolt Crank
NOTE::
CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft boss can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
