Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto 2015 for WRX Front-Mount Intercooler Kit will provide your 2015 for WRX with the ability to make the most horsepower and torque possible. This 2015 for WRX intercooler was designed with a large 28" intercooler core that provides the maximum cooling capability without excessive pressure drops that will wear out any turbocharger over time. The Mishimoto 2015 for WRX front-mount intercooler features smooth cast end tanks that are CFD tested for maximum airflow with no sharp walls or bends from cut-and-weld end tanks that disrupt airflow. The intercooler provides the best airflow and heat-exchange properties for those time-attack laps, or a 10-second blast down the quarter mile.
The Mishimoto for Subaru WRX Front-Mount Intercooler also features four mandrel-bent aluminum pipes for optimum airflow. The hot-side pipes are 2.25" in diameter to keep airflow velocities high, giving your car an instant response without the excessive throttle lag that plagues many front-mount intercooler designs. The hot-side pipe also features a CNC-machined flange for a leak free connection to the turbo. The cold side of the system features 2.5" to 2.75" mandrel-bent aluminum tubing for maximum airflow and to match the diameter of your throttle body.
This 2015 for WRX front-mount intercooler kit contains everything needed for a worry-free installation, including an application-specific crash bar that both supports the intercooler and mounts to existing points on the vehicle. No cutting of the front bumper or drilling is required to install the crash bar and intercooler. The kit includes all necessary mounting brackets, including a new bracket for the air intake. Our 2015 for WRX front-mount intercooler kit also includes every coupler and clamp you need for a clean install, and complements the Mishimoto for Subaru WRX Performance Air Intake for added cooling power.
Mishimoto tested this for WRX intercooler on our Stage 2 265 whp 2015 for WRX to find significant drops in AITs (air intake temperatures), and it has also been flow tested to over 600 whp! The 2015 for WRX front-mount intercooler is available with either a Sleek Silver or Stealth Black cooler and, like all our 2015 for WRX parts, includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Fits the 2015+ for Subaru WRX
3.5" Thick intercooler design optimized for maximum flow
Designed to work with Mishimoto Performance Air Intake and stock intake
No modification to front bumper and retains stock fog lights
Includes black powder-coated steel, tubular crash bar
Smooth cast end tanks allow the best possible airflow in and out of the intercooler
Optimal core design for maximum cooling efficiency with minimal pressure drop
Rated to 600 whp
Includes all necessary couplers, brackets, and accessories
Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
Mishimoto Lifetime Warranty

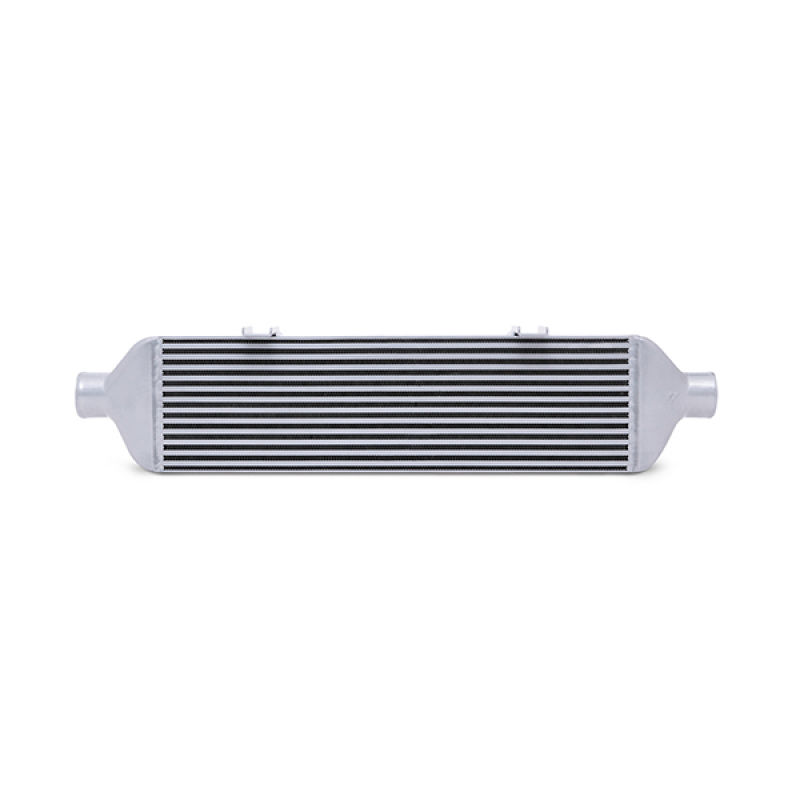

Cooler Overall Size
37.7" x 8.6" x 5.4"
Cooler Core Size
28" x 8.05" x 3.5"
Cooler Construction
Bar-and-plate with cast end tanks
Cooler Tank Wall Thickness
3.5mm
Cooler Inlet/Outlet
2.45" I.D. / 2.75" O.D.

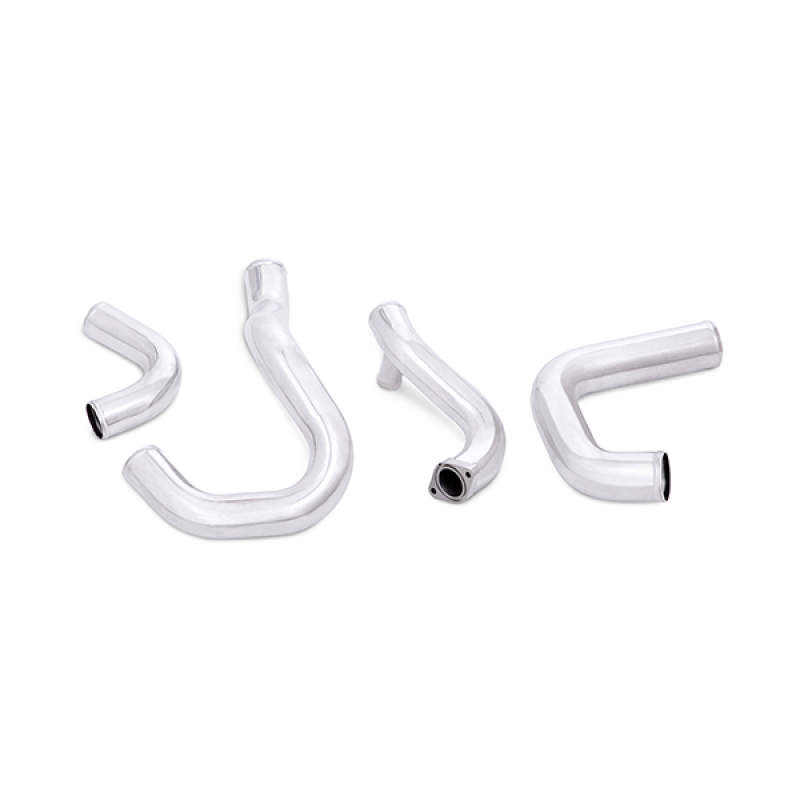

Hot-Side Intercooler Pipe Specs
–Made from Polished Mandrel-Bent Aluminum
–2.25" I.D.
–Hot-Side has CNC-Machined Flange for a Leak Free Connection to Turbo
–Includes Two Lower Intercooler Pipes
Cold-Side Intercooler Pipe Specs
–Made from Polished Mandrel-Bent Aluminum
–2.5" & 2.75" I.D. Pipes
–Includes Upper and Lower Intercooler Pipes

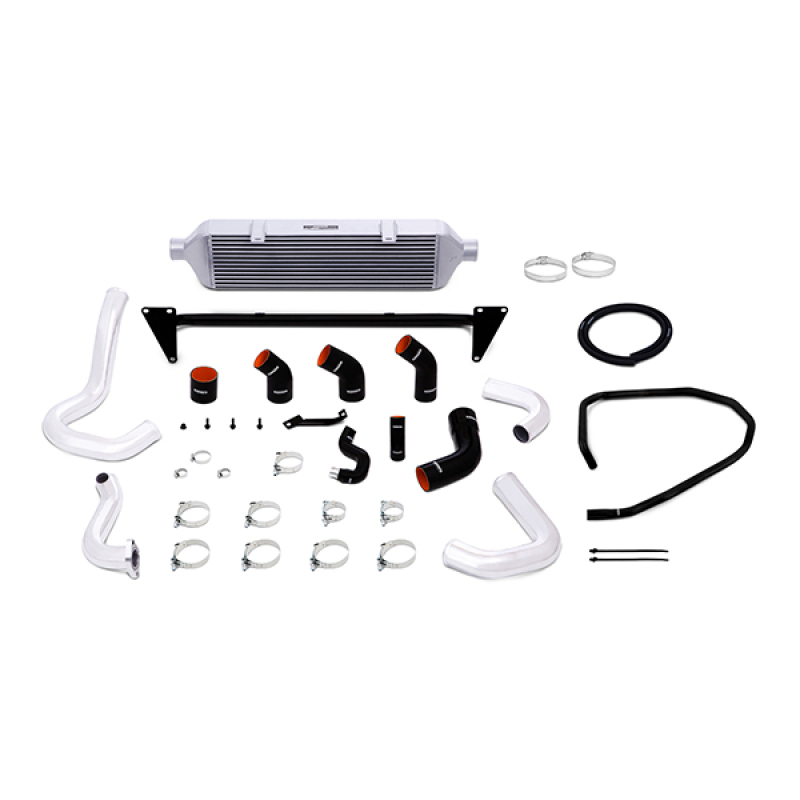

Purchase Includes
(1) Bar-and-Plate Intercooler
(1) Steel Crash Bar w/Mounting Hardware
(2) Hot-Side Intercooler Pipes
(2) Cold-Side Intercooler Pipes
(1) Air Intake Bracket
(1) 2.25" 45° Coupler
(1) 2.25" to 2.75" 45° Transition Coupler
(1) 2.5" to 2.75" 55° Transition Coupler
(1) 2.5" to 2.75" 65° Transition Coupler
(1) 2.75" Straight Coupler
(2) BPV Hoses
(1) BPV Vacuum Hose
(1) CCV Hose*
(1) 30–45mm Worm-Gear Clamp
(2) 1.75" T-Bolt Clamps
(3) 2.5" T-Bolt Clamps
(2) 2.75" T-Bolt Clamps
(5) 3" T-Bolt Clamps
Mishimoto Lifetime Warranty

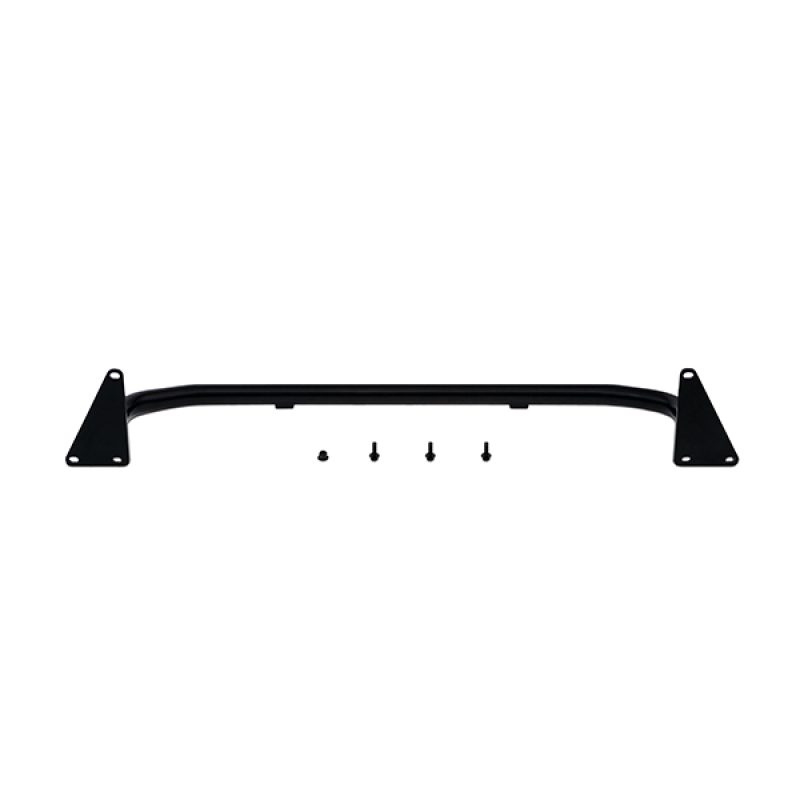

Crash Bar Specs
Steel Construction with Black Powder Coat
Application-Specific Mounting Holes
Chassis Codes
VA
Engine Codes
FA20DIT
Fits
15+ for Subaru WRX
Note
Mishimoto recommends that this intercooler kit, not be used with the stock ECU programming. It is highly recommended that the customer be able to retune the vehicleÂ’s ECU after installing the intercooler kit. Power gains will vary depending on the size of the turbo, exhaust system, fuel system, and type of ECU tune that is applied to the vehicle.
This kit is rated for approximately 600 whp during normal operating conditions. Maximum horsepower potential will be near 700 whp. Exceeding these horsepower or pressure limits could require a custom-size front-mount intercooler.
Included CCV Hose is only necessary for installation if you are using the stock hose.
Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).
This front-mount intercooler kit will not fit with the Mishimoto 2015+ WRX oil cooler kit
Fitment Information provided by Mishimoto:
2015-2016 for Subaru WRX Base 2.0 Liter TY751
2015-2016 for Subaru WRX Limited 2.0 Liter TR690
2015-2016 for Subaru WRX Limited 2.0 Liter TY751
2015-2016 for Subaru WRX Premium 2.0 Liter TR690
2015-2016 for Subaru WRX Premium 2.0 Liter TY751
