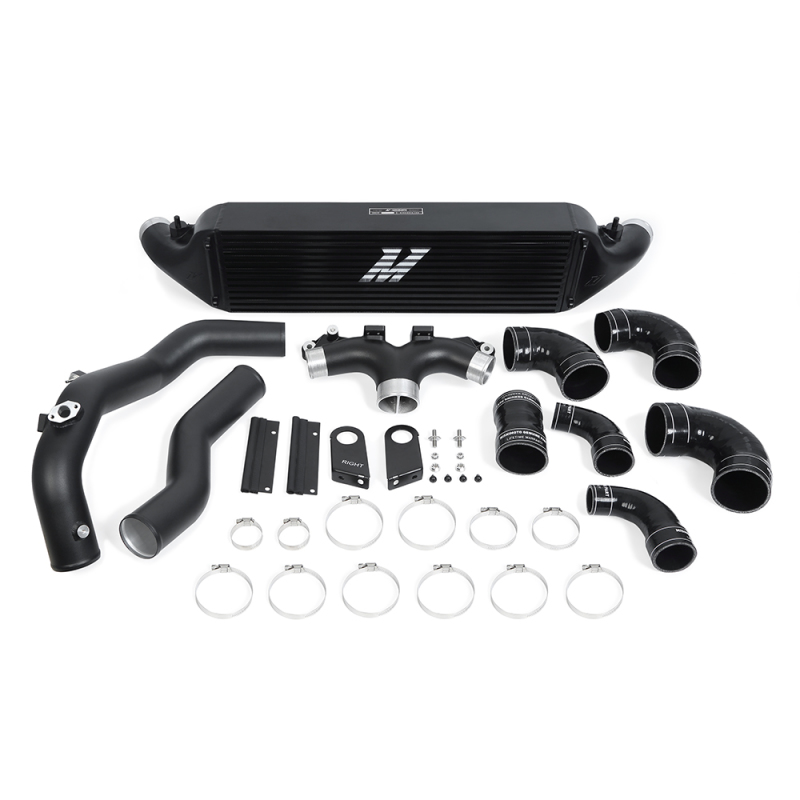

Mishimoto 2018+ Kia Stinger GT 3.3T Performance Intercooler Kit - Black.

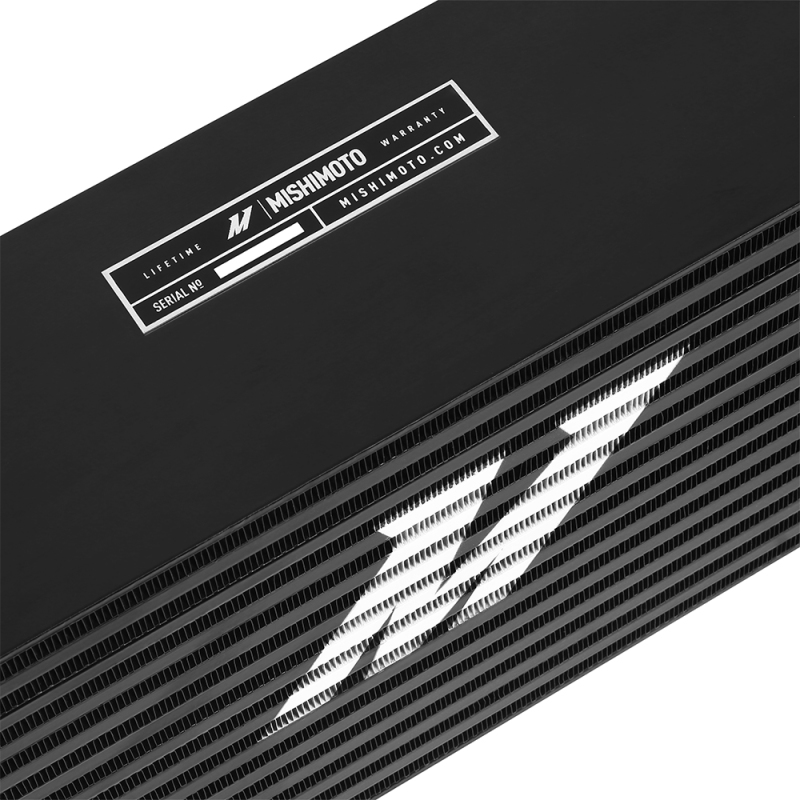

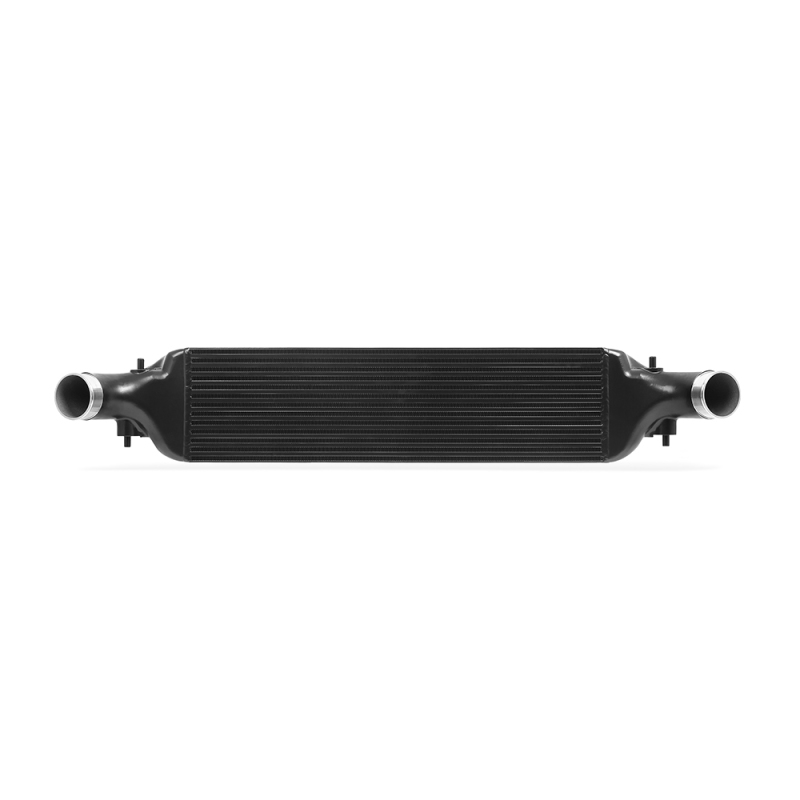

Give your 2018+ Kia Stinger GT some extra cooling power with the Mishimoto Performance Intercooler Kit. Kia's Stinger line-up made quite the splash upon its release and added a much-needed shakeup in the mid-sized sports sedan segment. Even though the Lambda II GDI 3.3T provides one of the best platforms out there today, the intercooling system has the potential to hold the Stinger back. Our new design replaces the entire intercooling system, from turbo to throttle body, providing an optimized airflow to, from, and through the intercooler. The Mishimoto Performance Intercooler replaces the tube-and-fin core coupled to plastic end tanks with a robust bar-and-plate core, TIG-welded to a pair of cast aluminum end tanks for vastly improved heat dissipation and flow through the core.

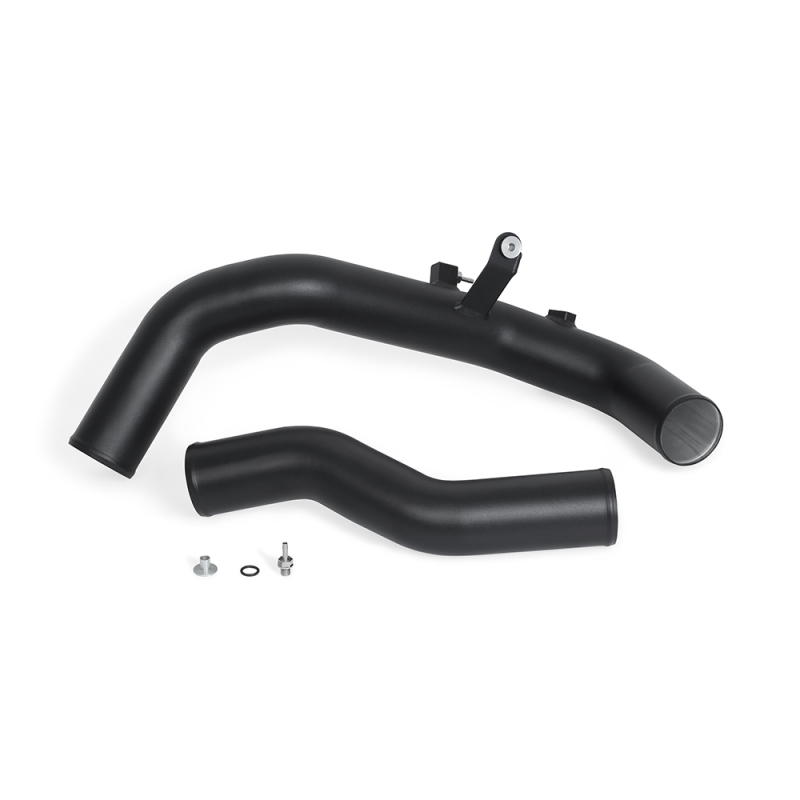

The construction wasn't the only update, and we also expanded our core for a 94% increase in core volume and a 74% increase in external fin surface area. While the stock piping was already a durable aluminum construction, the diameter could lend itself to restrictions as the power increases. We kept the aluminum but increased the inner diameter to 3" for increased flow through the system with minimal pressure drop.

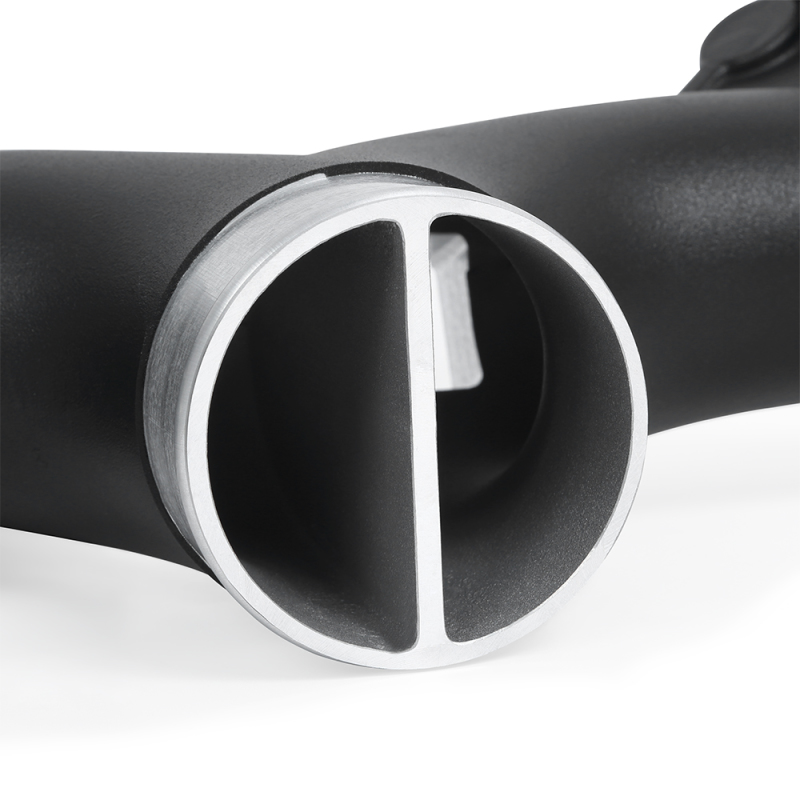

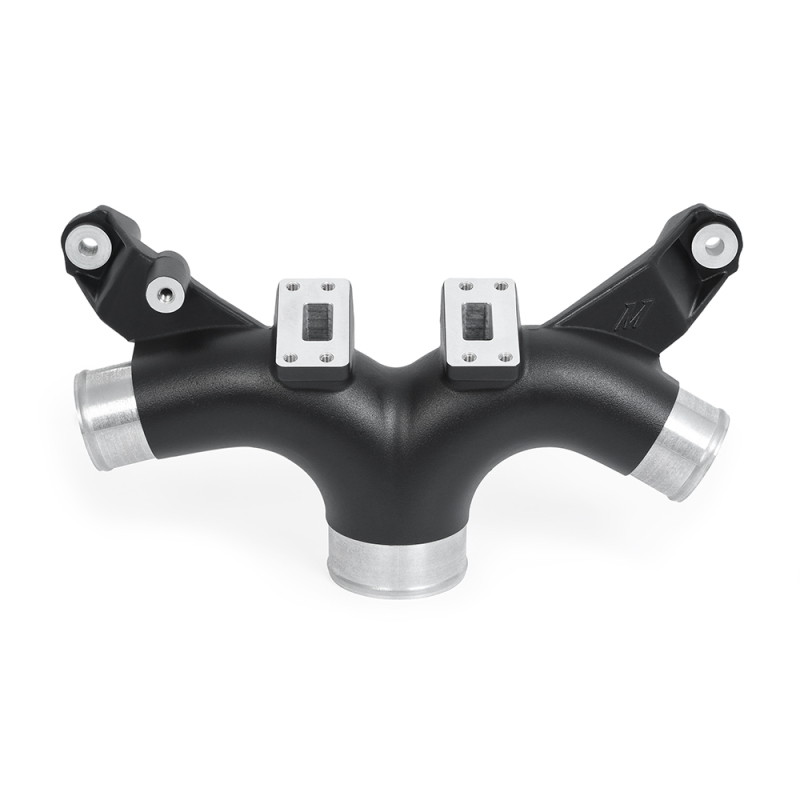

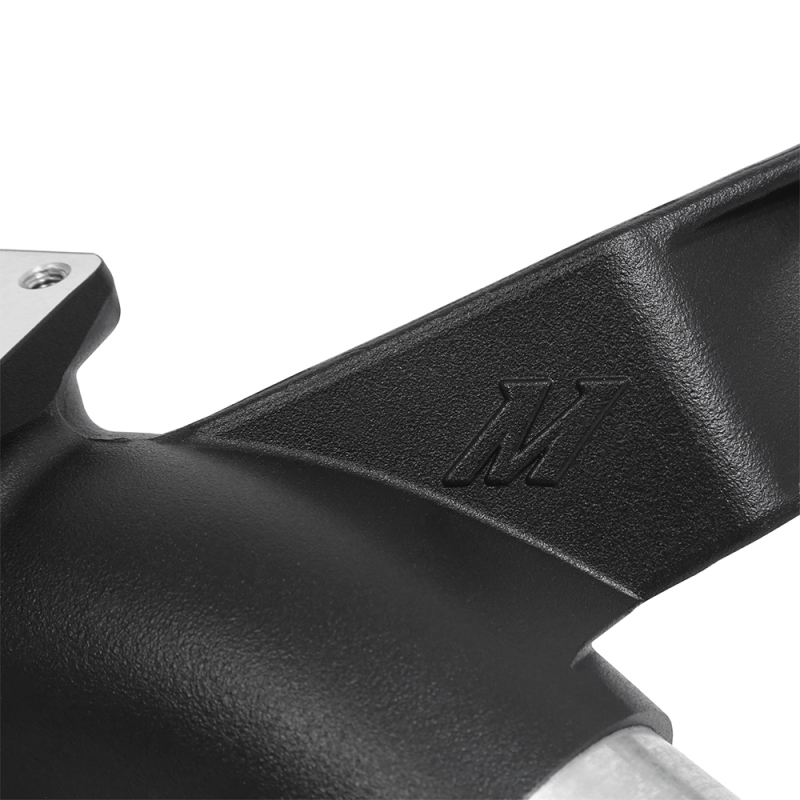

We also made sure to overhaul the piping merger manifold, increasing the inlets to 2" and outlet to 3" for a 51% boost in flow straight out of the turbos, while retaining compatibility with the stock recirculation valves. Our piping kit is finished in a sleek micro-wrinkle black powder coat to retain the OEM+ look under the hood and is linked together with our 5-layer silicone couplers. Our intercooler kit isn't just about a new look but will perform.
Once on the dyno, the combination of the larger piping diameters, and increased intercooler size equated to a 29 F drop in outlet temperatures with a gain of 8whp and 8wtq on stock tuning. We also made sure to turn up the boost with our testing and installed a stage 1 map tune on our Stinger and recor
